The bag-filter assembly casing stiffeners faced localized high-stress areas, potentially leading to structural inadequacies. Certain members showed elevated stress levels, raising concerns about plastic strain under more demanding conditions.

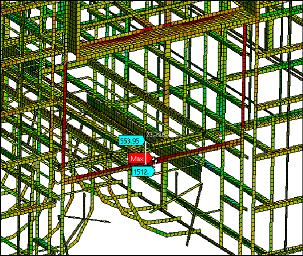

Elastic material analysis identified high-stress regions, attributed primarily to numerical errors (stress singularities). For members with consistent elevated stresses, proposed modifications included increasing stiffener thickness and reinforcing plate ‘A’ with additional designs.
The analysis confirmed that most stiffeners performed satisfactorily under standard conditions, with the proposed modifications addressing areas of concern. These changes enhance the structural robustness and longevity of the bag-filter assembly.
Enhanced the performance of bag-filter by design optimisation.
Iterative analysis and targeted design adjustments ensured the structural adequacy of the bag-filter assembly. By addressing high-stress regions and refining stiffener designs, the study highlights the value of thorough evaluations in optimizing engineering solutions.
