The Tower Crane faced potential structural risks due to wind-induced vortex formation, requiring an assessment of resonance frequencies, deformation, and stress responses under varying wind directions to ensure safety and performance.

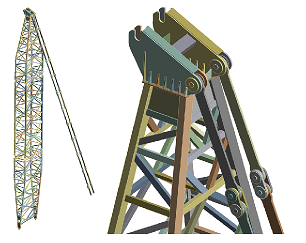

The Finite Element Analysis and subsequent post-processing for the structural behavior analysis of a Tower Crane under wind loading were conducted using the versatile ANSYS software. The methodology encompassed three integral steps: firstly, the creation and preparation of 3D CAD geometry for subsequent FEA; secondly, the subdivision of the CAD geometry into finite elements to enable computational analysis, commonly known as meshing; and thirdly, the configuration of parameters for analysis, followed by computational assessment, ensuring reliability without specific numerical values.

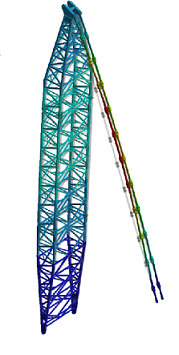

Subsequently, the post-processing phase involved the examination of results and the generation of reports, with a dedicated focus on the Tower Crane’s structural behavior under diverse wind directions. This comprehensive methodology allowed for a categorical evaluation of the structural response without delving into specific numerical details, aligning with the goal of understanding the Tower Crane’s behavior under varying wind conditions.
The study provided insights into structural behavior under varying wind scenarios, aiding in identifying critical design considerations. This knowledge enhances safety, optimizes crane performance, and ensures resilience against wind-induced stresses and deformation.
Safety & Design optimisation of the crane as per the Euro codes.
The Tower Crane demonstrated varied structural responses under different wind directions. The analysis highlighted the importance of considering specific wind scenarios in the design and structural assessment of tower cranes. This case study emphasizes the critical role of FEA in understanding and optimizing the structural performance and safety of tower cranes.
